Products

We offer steel angles that are made with very close tolerances and exact mechanical properties. Available in smooth and continuous surface finishes. We have these in namely Mild Steel Angles(MS Angles) & High Tensile Angles used in communication and transmission towers. Approval from Power grid Corporation of India ltd (PGCIL) For MS & HT Angles upto 130x12 mm. MS Equal Angles 35x35 mm upto 150x150 mm and thickness from 4 mm up to and including 20 mm as per Grade E250 A & Grade E350 A Thickness (mm) LEG (mm) 4 5 6 7 8 10 12 16 20 ISA 35x35 2.1 2.6 3.0 ISA 40x40 2.4 3.0 3.5 ISA 45x45 2.7 3.4 4.0 ISA 50x50 3.0 3.8 4.5 5.15 ISA 55x55 3.3 4.1 4.9 6.4 7.9 ISA 60x60 3.7 4.5 5.4 7.0 8.6 ISA 65x65 4.0 4.9 5.8 7.7 9.4 ISA 70x70 5.3 6.3 7.38 8.3 10.2 ISA 75x75 5.7 6.8 8.9 11.0 ISA 80x80 7.3 9.6 11.8 14.0 ISA 90x90 8.2 10.8 13.4 15.8 ISA 100x100 9.2 10.7 12.1 14.9 17.7 ISA 110x110 13.4 16.6 19.7 25.7 ISA 130x130 15.9 19.7 23.5 30.7 ISA 150x150 22.9 27.3 35.8 44.1 MS Unequal Angles 45x30mm thickness from 4 mm upto and including 6 mm as per Grade E 250A & Grade E 350A Thickness (mm) LEG (mm) 4 5 6 8 10 12 16 20 ISA 45X30 1.9 2.4 2.8 Rolling and Cutting Tolerance LEG LENGTH SECTIONAL WEIGHT LENGTH Up to 45 mm: +/- 1.5 mm FOR FIX LENGTH 45 to 100 mm:+/- 2 mm over 3 mm :+5% -3% :+/- 100 MM above 100 mm:+/- 2 % Chemical Composition GRADE C % Mn % S % P % Si % CE VALUE MS E-250 A 0.23 1.50 0.045 0.045 0.40 0.42 HT E-350 A 0.20 1.55 0.045 0.045 0.45 0.47 Tolerance 0.02 0.05 0.005 0.005 0.03 0.03 Mechanical Properties Tensile Strength Yield Stress % Elongation at Bend Test MIN, MPA MIN ,MPA GAUGE LENGTH 5.65 MIN MM <20 20-40 >40 MIN MS E-250 A 410 250 240 230 23 2t HT E-350 A 490 350 330 320 22 2t Tolerance Bhartiya Alloys & steelcast Ltd, Plot No . 180,181,182,272 A&B Bhiwandi -Wada Rd , At Village : Ghonsai (Met Naka) Taluka : Wada , Dist : Palghar Pin 421312, Maharashtra Mayur Jain: +91-9892172510 Chirag Jain: +91-7678040948 info@bhartiyaispat.com © 2016 Bhartiya Co.

Mild Steel Angles (MS Angles) – Bhartiya Metacast Private Limited Bhartiya Metacast Private Limited offers premium-quality Mild Steel Angles (MS Angles) that are widely used in construction, fabrication, and industrial applications. Manufactured using superior-grade mild steel, our MS Angles are known for their exceptional strength, durability, and dimensional accuracy. Designed to provide excellent structural support, these angles are ideal for frameworks, supports, brackets, and reinforcements in buildings, bridges, and infrastructure projects. Our MS Angles ensure high load-bearing capacity and resistance to corrosion, making them suitable for both indoor and outdoor applications. Available in a variety of sizes, thicknesses, and specifications, Bhartiya Metacast Private Limited ensures that each product meets industry standards and customer requirements. With precise finishing and robust construction, our MS Angles guarantee long-lasting performance and reliability. Key Features: High tensile strength and durability उत्कृष्ट load-bearing capacity Corrosion-resistant and long service life Accurate dimensions and smooth finish Suitable for construction and industrial use Applications: Structural frameworks Industrial sheds and buildings Transmission towers Machinery and fabrication works Support structures At Bhartiya Metacast Private Limited, we are committed to delivering top-quality steel products that meet the highest standards of performance and reliability.

Channels (Mild Steel Channels) – Bhartiya Metacast Private Limited Bhartiya Metacast Private Limited offers high-quality MS Channels (Mild Steel Channels) designed for superior strength, durability, and structural support. Manufactured using premium-grade mild steel and advanced technology, our channels are widely used in construction, engineering, and industrial applications. MS channels are known for their excellent load-bearing capacity and versatility, making them ideal for structural frameworks, supports, and reinforcements. With precise dimensions and a uniform finish, our channels ensure easy installation and reliable performance in demanding environments. Key Features: High strength and excellent structural stability Durable and long-lasting performance مقاومة جيدة للتآكل (can be coated for corrosion resistance) Precision-engineered with accurate dimensions Available in various sizes, thicknesses, and specifications Applications: Construction and infrastructure projects Industrial structures and fabrication work Support frames and structural reinforcements Machinery and equipment base structures Bridges, warehouses, and sheds Why Choose Our Channels? At Bhartiya Metacast Private Limited, we are committed to delivering high-quality steel products that meet industry standards. Our channels undergo strict quality checks to ensure durability, reliability, and customer satisfaction.

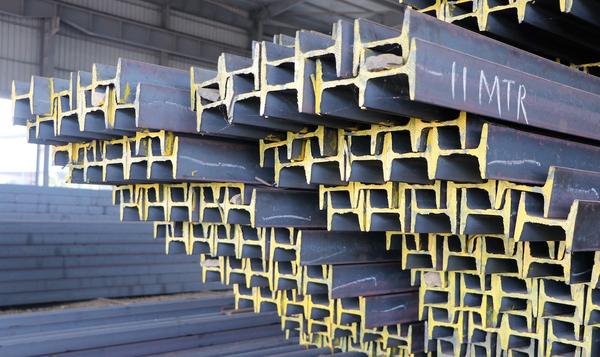

MS Beams (Mild Steel Beams) – Bhartiya Metacast Private Limited Bhartiya Metacast Private Limited offers premium quality MS Beams (Mild Steel Beams) engineered for superior strength, durability, and structural reliability. Manufactured using high-grade mild steel and advanced production processes, our MS beams are designed to withstand heavy loads and demanding construction conditions. MS beams are widely used in construction, infrastructure, and industrial projects due to their excellent load-bearing capacity and versatility. These beams provide strong support to structures such as buildings, bridges, warehouses, and industrial sheds, ensuring long-lasting performance and safety. Key Features: High tensile strength and load-bearing capacity Durable and long-lasting performance مقاومة جيدة للتآكل (can be treated/coated for corrosion resistance) Precision-engineered with uniform dimensions Available in various sizes, lengths, and specifications Applications: Residential and commercial construction Bridges and infrastructure projects Industrial structures and warehouses Structural frameworks and supports Fabrication and engineering works Why Choose Our MS Beams? At Bhartiya Metacast Private Limited, we are committed to delivering reliable and high-quality steel products. Our MS beams are manufactured under strict quality standards to ensure consistency, strength, and customer satisfaction.

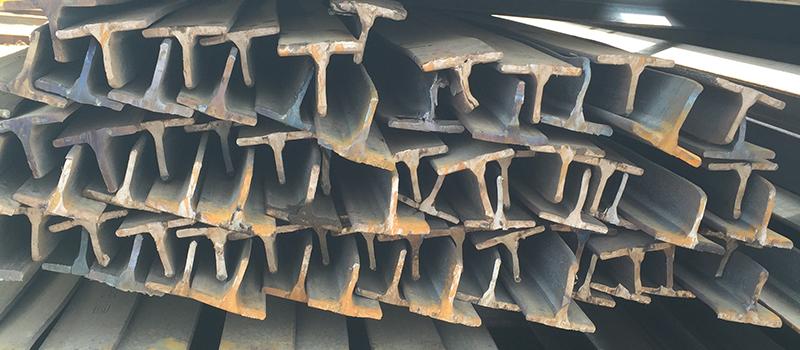

RSJ Poles (Rolled Steel Joist Poles) – Bhartiya Metacast Private Limited Bhartiya Metacast Private Limited manufactures and supplies high-quality RSJ Poles (Rolled Steel Joist Poles) designed for superior strength, durability, and long-term performance. Made from premium-grade steel and processed using advanced manufacturing techniques, our RSJ poles are ideal for heavy-duty structural and utility applications. Known for their high load-bearing capacity and resistance to harsh environmental conditions, RSJ poles are widely used in infrastructure projects, electrical transmission, fencing, and construction applications. Their robust design ensures stability, safety, and reliability even under extreme weather conditions. Key Features: High strength and excellent structural stability Corrosion and weather resistance Long service life with minimal maintenance Precision-engineered for consistent performance Available in various sizes, lengths, and specifications Applications: Electrical transmission and distribution poles Street lighting poles Fencing and boundary structures Construction and infrastructure projects Industrial and agricultural applications Why Choose Our RSJ Poles? At Bhartiya Metacast Private Limited, we are committed to delivering high-quality steel solutions that meet industry standards and customer expectations. Our RSJ poles are tested for durability and performance, ensuring reliability in every application.

Stainless Steel Tee Bars – Bhartiya Metacast Private Limited Bhartiya Metacast Private Limited offers high-quality Stainless Steel Tee Bars designed for superior strength, durability, and structural performance. Manufactured using premium-grade stainless steel and advanced production techniques, our Tee Bars ensure excellent load-bearing capacity and long service life even in demanding environments. Our Tee Bars are widely used in construction, fabrication, engineering, and industrial applications, providing reliable support and structural stability. With precise dimensions and a smooth finish, they are ideal for frameworks, supports, reinforcements, and architectural applications. Key Features: High strength and excellent load-bearing capacity Superior corrosion and rust resistance Durable and long-lasting performance Precision-engineered with smooth surface finish Available in multiple sizes, thicknesses, and grades (SS 304, SS 316, etc.) Applications: Construction & Infrastructure Projects Industrial Fabrication Structural Frameworks & Supports Engineering & Mechanical Industries Architectural Designs Why Choose Our Tee Bars? At Bhartiya Metacast Private Limited, we focus on delivering top-quality stainless steel products that meet international standards. Our Tee Bars are manufactured under strict quality control to ensure reliability, consistency, and customer satisfaction.

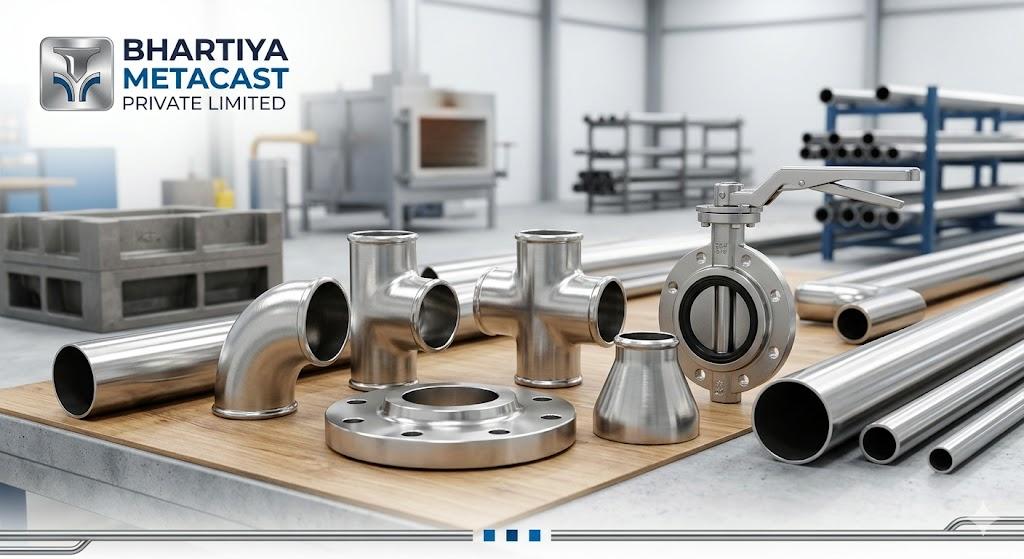

Premium Stainless Steel Products – Bhartiya Metacast Private Limited At Bhartiya Metacast Private Limited, we specialize in manufacturing and supplying high-quality stainless steel products designed to meet diverse industrial and commercial requirements. Our products are crafted using premium-grade raw materials and advanced manufacturing techniques to ensure superior strength, durability, and performance. Our stainless steel range is known for its excellent corrosion resistance, high tensile strength, and long service life, making it ideal for applications in industries such as construction, oil & gas, chemical processing, pharmaceuticals, food processing, and more. We offer a wide variety of stainless steel products, including pipes, tubes, fittings, cast components, and customized solutions tailored to client specifications. Each product undergoes strict quality checks to ensure compliance with international standards and customer expectations. Key Features: High durability and long-lasting performance Corrosion and rust resistance Precision engineering and superior finish Suitable for high-temperature and pressure applications Custom sizes and specifications available With a strong commitment to quality, innovation, and customer satisfaction, Bhartiya Metacast Private Limited stands as a trusted partner for reliable stainless steel solutions.
